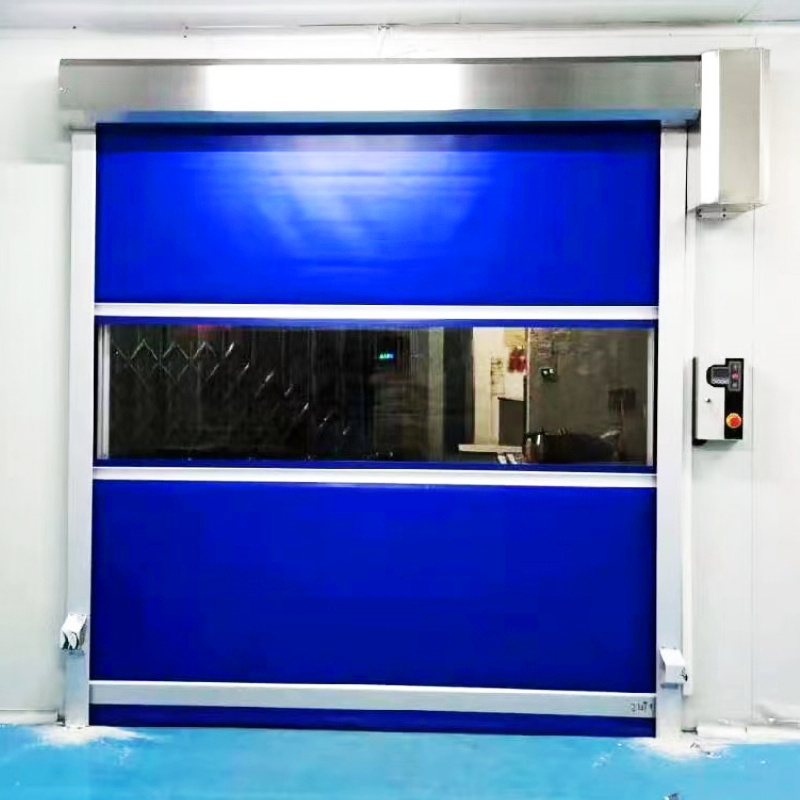

Product Detail
| Type | Servo high speed door | Tubular motor high speed door | |
| Low configuration | High confiquration | ||
| Max. size | DW4500*DH4500 | DW4500*DH4500 | DW6000*DH5000 |
| Min. size | DW1600*2250 | DW1600*2250 | DW1600*2250 |
| Open speed | Max.1.2m/s | Max.1.2m/s | 1.8m/s(adjustable) |
| Close speed | 0.6m/s | 0.6m/s | 0.6m/s(adjustable) |
| Wind load resistance | 300N/㎡（≤Force 7） | 300N/㎡（≤Force 7） | 300N/㎡（≤Force 7） |
| Noise Level | 12dB | 12dB | 12dB |
| Power | 0.75kw,1.5kw | 1.5kW | 0.75kw,1.5kw |
| Operating temperature | -35 ~ 55°C | -35 ~ 55°C | -35 ~ 55°C |
| Opening Frequency | 60 times hour | 60 times hour | 60 times hour |
| Curtain color | Red ,Blue ,Yellow ,Orange ,Gery | ||
| Application | Automotive, Electronics, Logistics, Food, Electronics, pharmaceuticals, Traditional, Manufacturing and other Industries. | ||
| MOQ | 1 Set | ||
| OEM | Accepted | ||
Features
1. Rail,lower beam and windproof strip are manufactured with high-quality aluminum alloy profiles with beautiful shape.
2. Use servo motor,servo control and encoder limit.The door body operates stably,the switch speed of closing and opening is fast,to be specific,less than 0.3s,and generally no noise of motor braking occurs.Upon operations of hundreds of thousands of times,the limit error is less than 2mm.
3. Be equipped with wireless safety air bag and infrared protection system.return quickly to fully open state in the event of people or objects when the door body is moving down.have good safety performance.
4. Anti-collision derailing protection.
5. Geomagnetic loop or pull a rope for opening is an option in terms of the users requirements.
FAQ
1. What is your MOQ?
Re: No limit based on our standard color.Customized color need 10000m
2. What about your package?
Re: Carton box for full container order, Polywood box for sample order
3. We want to be your agent of our area. How to apply for this?
Re: Please send your idea and your profile to us. Let's cooperate.
